WAGO - 289-197

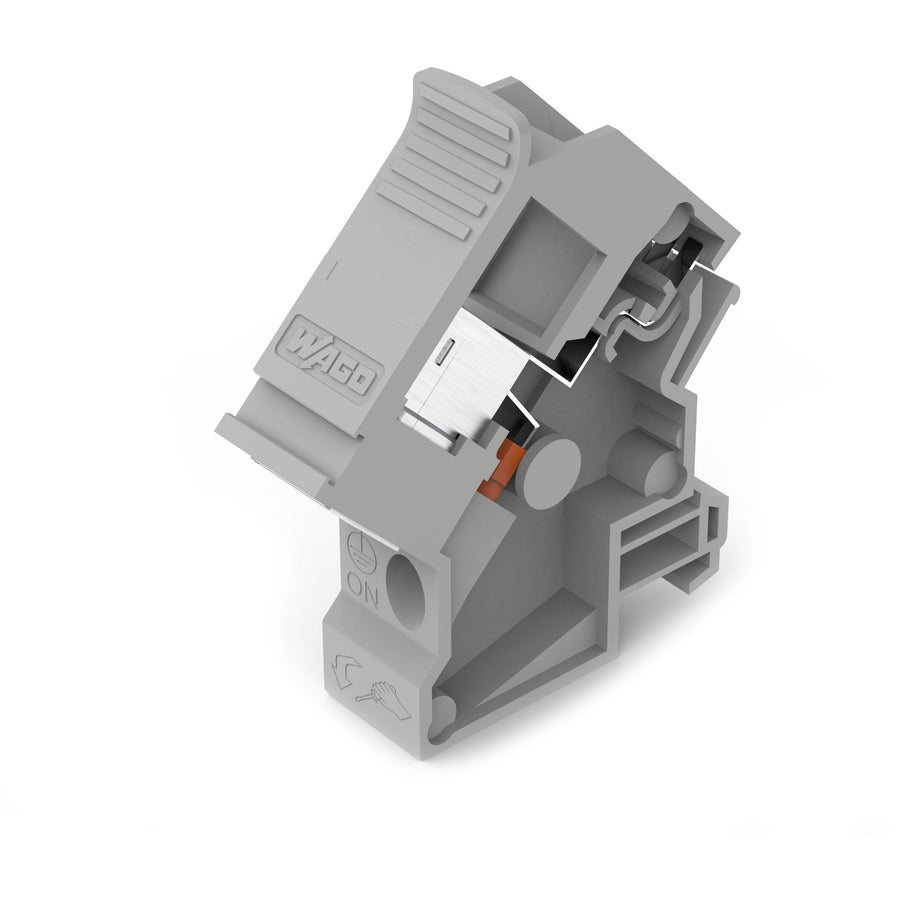

Interface module - in mounting carrier - WAGO (289 series) - 8-poles (8P) - with RJ45 8-pin connector (system) x 2 + IDC connector 8-pin (system) - DIN-35 rail mounting (18mm width) - IP20 - rated for -10°C...+60°C ambient - equivalent to 289197

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier|750 mating cycles
• Poles: 8-poles (8P)
• Connection type: RJ45 8-pin connector (system) x 2|IDC connector 8-pin (system)
• Mounting mode: DIN-35 rail
• Dimensions: H90mm x W18mm x D59mm
• Net Width (mm): 18mm
• Ambient air temperature for operation: -10°C...+60°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤95% relative humidity (RH; non-condensing)
• GTIN code: 4066966083484
• ETIM code: EC002780
• Customs Tariff Number: 85366990990
• Order code / Manufacturer SKU: 289-197
• Manufacturer product status: Commercialized
• Equivalent to: 289197
• EAN code: 4066966083484
• Compliant with standard(s): Approvals for marine applications|- DNV - DNV Germany GmbH - DNV-CG-0339 / Aug.2021 - certificate TAE00004KF|RoHS compliant
• Location of origin: Poland
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4066966083484
• Packaging type: bag
• PU (SPU): 1 pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: RJ-45 (shielded)
• Connection 1 - Pole number 1: 8
• Connection 2 - Connection technology: IDC connection
• Connection 2 - Connection type: System
• Connection 2 - Pole number 2: 8
• Connection 2 - Solid conductor: 0.4 … 0.65 mm² / 26 … 22 AWG
• Connection 2 - Stranded conductor: 0.4 … 0.65 mm² / 26/7 … 22/7 AWG
• Connection 2 - Strip length: 4.5 … 9.6 mm / 0.18 … 0.38 inches
• Connection cable: Cat. 6A (min.)
• Mating cycles: 750

Electrical data

• Contact resistance (max.): 5 mΩ
• Specialty functions: with shield connection

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -10 … +60 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 95 % (non-condensing)

Material data

• Contact material (connector): CuSn
• Weight: 39g

Mechanical data

• Housing design: Mounting carrier
• Mating cycles: 750
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 59 mm / 2.323 inches
• Height: 90 mm / 3.543 inches
• Width: 18 mm / 0.709 inches

Safety and protection

• Protection type: IP20
