WAGO - 289-195

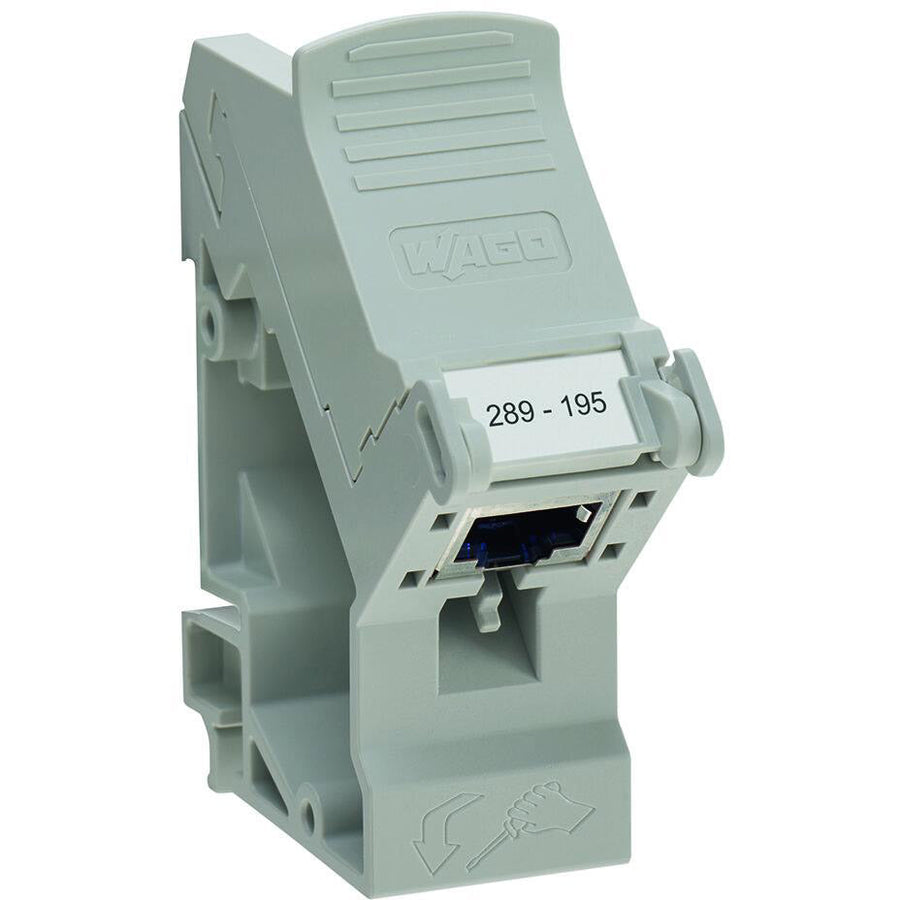

Interface module with shielded connection + mating IDC connectors - in mounting carrier - WAGO (289 series) - 8-poles (8P) - with RJ45 8-pin connector (system) + IDC connector 8-pin (system) - DIN-35 rail mounting (26.8mm width) - IP20 - rated for -10°C...+60°C ambient - equivalent to 289195

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: shielded connection|mating IDC connectors|in mounting carrier|750 mating cycles
• Poles: 8-poles (8P)
• Connection type: RJ45 8-pin connector (system)|IDC connector 8-pin (system)
• Mounting mode: DIN-35 rail
• Dimensions: H81.4mm x W26.8mm x D64.4mm
• Net Width (mm): 26.8mm
• Ambient air temperature for operation: -10°C...+60°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: ≤95% relative humidity (RH; non-condensing)
• GTIN code: 4055143292986
• ETIM code: EC002780
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-52
• Order code / Manufacturer SKU: 289-195
• Manufacturer product status: Commercialized
• Equivalent to: 289195
• EAN code: 4055143292986
• Compliant with standard(s): General approvals|- UL - Underwriters Laboratories Inc. - UL 1977 - certificate E345416|Approvals for marine applications|- DNV - DNV Germany GmbH - DNV-CG-0339 / Aug.2021 - certificate TAE00004KF|RoHS compliant
• Location of origin: Switzerland
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: CH
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4055143292986
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: RJ-45 (shielded)
• Connection 1 - Pole number 1: 8
• Connection 2 - Connection technology: IDC connection
• Connection 2 - Connection type: System
• Connection 2 - Pole number 2: 8
• Connection 2 - Solid conductor: 0.2 … 0.32 mm² / 24 … 22 AWG
• Connection 2 - Stranded conductor: 0.2 … 0.32 mm² / 26/7 … 22/7 AWG
• Connection 2 - Strip length: 0.8 … 1.6 mm / 0.03 … 0.06 inches
• Connection cable: Cat. 6 (min.)
• Mating cycles: 750

Electrical data

• Specialty functions: with shield connection

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -10 … +60 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 95 % (non-condensing)

Material data

• Contact material (connector): Au over Ni
• Weight: 51g

Mechanical data

• Housing design: Mounting carrier
• Mating cycles: 750
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 64.4 mm / 2.535 inches
• Height: 81.4 mm / 3.205 inches
• Width: 26.8 mm / 1.056 inches

Safety and protection

• Protection type: IP20
