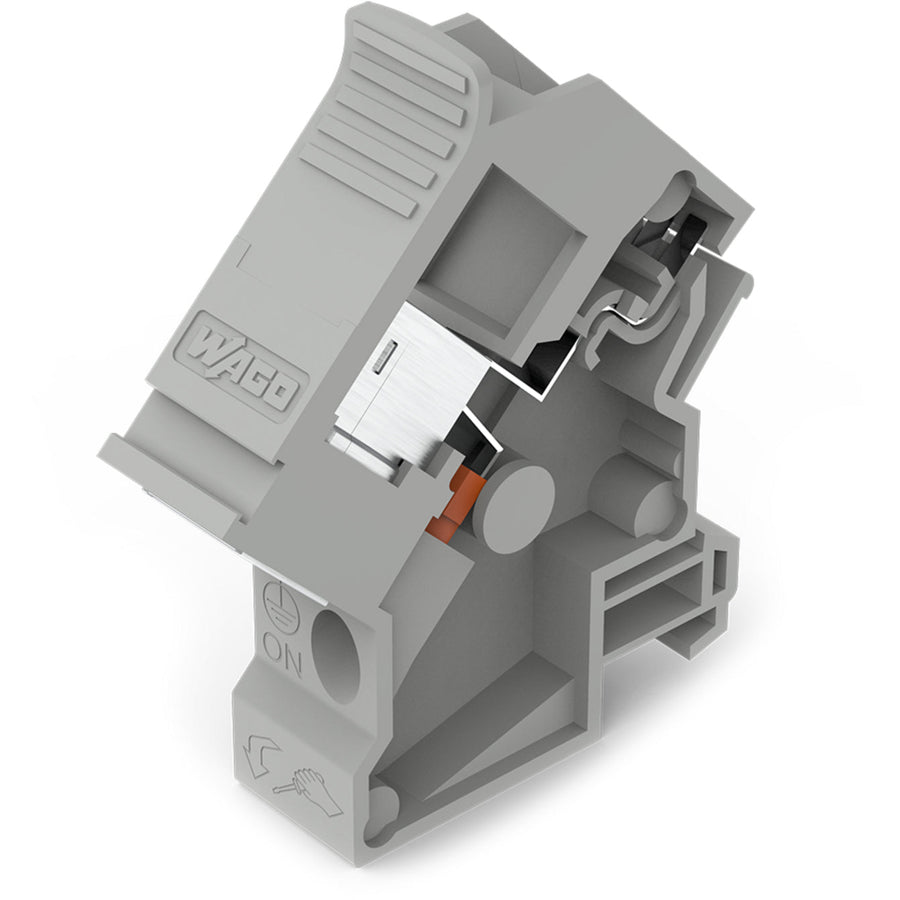

WAGO - 289-198

WAGO component - equivalent to 289198

Specifications

• Primary brand: WAGO
• GTIN code: 4066966083491
• Order code / Manufacturer SKU: 289-198
• Manufacturer product status: Commercialized
• Equivalent to: 289198
• EAN code: 4066966083491
• Manufacturer description: Coupler module; 2xRJ-45; Cat. 6A; in mounting carrier; with shield connection
• Manufacturer product specifications: Electrical data - Specialty functions -- with shield connection|Safety and protection - Protection type -- IP20|Connection data - Mating cycles -- 750|Connection data - Connection cable -- Cat. 6A (min.)|Connection data - Connection 1 - Pluggable connector -- RJ-45 (shielded)|Connection data - Connection 1 - Pole number 1 -- 8|Connection data - Connection 1 - Connection type 1 -- System|Connection data - Connection 2 - Connector 2 -- RJ-45 (shielded)|Connection data - Connection 2 - Pole number 2 -- 8|Connection data - Connection 2 - Connection type -- System|Physical data - Width -- 18mm / 0.709"|Physical data - Height -- 90mm / 3.543"|Physical data - Depth from upper-edge of DIN-rail -- 59mm / 2.323"|Mechanical data - Mounting type -- DIN-35 rail|Mechanical data - Housing design -- Mounting carrier|Mechanical data - Mating cycles -- 750|Material data - Contact material (connector) -- Spring steel|Material data - Weight -- 34g|Environmental requirements - Ambient temperature (operation) -- -10...+60°C|Environmental requirements - Ambient temperature (storage) -- -40...+70°C|Environmental requirements - Relative humidity -- ≤ 95% (non-condensing)|Commercial data - ETIM 9.0 -- EC002780|Commercial data - ETIM 8.0 -- EC002780|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 1 pcs|Commercial data - Packaging type -- bag|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4066966083491|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Poland
• Level 1 category: Automation components

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4066966083491
• Packaging type: bag
• PU (SPU): 1 pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: RJ-45 (shielded)
• Connection 1 - Pole number 1: 8
• Connection 2 - Connection type: System
• Connection 2 - Connector 2: RJ-45 (shielded)
• Connection 2 - Pole number 2: 8
• Connection cable: Cat. 6A (min.)
• Mating cycles: 750

Electrical data

• Specialty functions: with shield connection

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -10 … +60 °C
• Ambient temperature (storage): -40 … +70 °C
• Relative humidity: ≤ 95 % (non-condensing)

Material data

• Contact material (connector): Spring steel
• Weight: 34g

Mechanical data

• Housing design: Mounting carrier
• Mating cycles: 750
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 59 mm / 2.323 inches
• Height: 90 mm / 3.543 inches
• Width: 18 mm / 0.709 inches

Safety and protection

• Protection type: IP20
