WAGO - 289-196

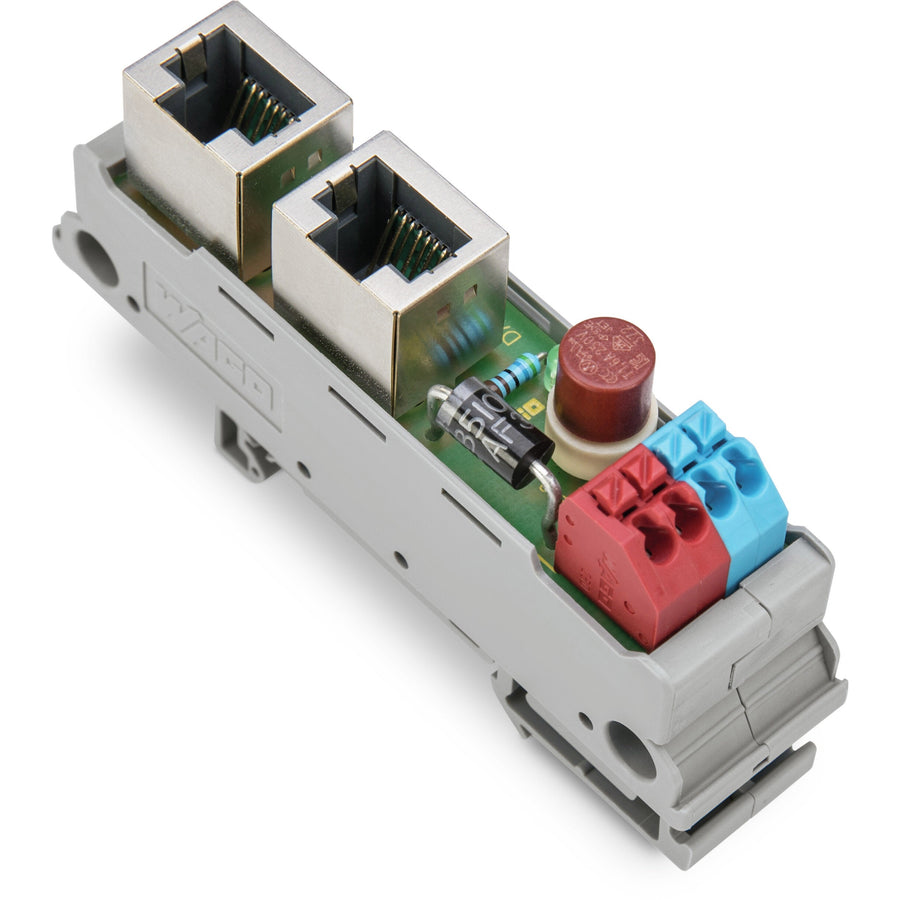

Interface module - in mounting carrier - WAGO (289 series) - 8-poles (8P) - with RJ45 8-pin connector (system) - Rated current 1.5A - DIN-35 rail mounting (20.5mm width) - rated for 0°C...+70°C ambient - equivalent to 289196

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: in mounting carrier|500 mating cycles
• Poles: 8-poles (8P)
• Rated current: 1.5A
• Rated Voltage (DC): 48Vdc
• Connection type: RJ45 8-pin connector (system)|spring CAGE CLAMP 2-pin for 0.2...1.5mm2 cables (supply)
• Mounting mode: DIN-35 rail
• Dimensions: H85mm x W20.5mm x D51mm
• Net Width (mm): 20.5mm
• Ambient air temperature for operation: 0°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: ≤85% relative humidity (RH; non-condensing)
• eClass code: 27-14-11-52
• Customs Tariff Number: 85366990990
• GTIN code: 4055143572637
• ETIM code: EC002780
• Order code / Manufacturer SKU: 289-196
• Manufacturer product status: Commercialized
• Equivalent to: 289196
• EAN code: 4055143572637
• Compliant with standard(s): RoHS compliant with exemption (6(c) / 7(a))
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-52
• eCl@ss 9.0: 27-14-11-52
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4055143572637
• Packaging type: box
• PU (SPU): 5 pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: RJ-45 (shielded)
• Connection 1 - Pole number 1: 8
• Connection 2 - Connection type: System
• Connection 2 - Connector 2: RJ-45 (shielded)
• Connection 2 - Pole number 2: 8
• Connection 3 - Connection technology: Push-in CAGE CLAMP^®
• Connection 3 - Connection type: Power supply
• Connection 3 - Fine-stranded conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Connection 3 - Pole number 3: 4
• Connection 3 - Solid conductor: 0.2 … 1.5 mm² / 24 … 16 AWG
• Connection 3 - Strip length: 8.5 … 9.5 mm / 0.33 … 0.37 inches
• Connection 3 - WAGO connector 3: WAGO 250 Series
• Connection cable: Cat. 5 (min.)
• Mating cycles: 500
• Transmission length (max.): 100m

Electrical data

• Insulation resistance: ≥ 500 MΩ
• Nominal current: 1.5A
• Operating voltage: ≤ 48 VDC
• Specialty functions: Passive PoE injector|With LED, fuse

Environmental Product Compliance

• CAS-No.: 25550-51-0|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)
• SCIP notification number (Austria): f376c5e7-5da9-4959-8614-a4137f985d8b
• SCIP notification number (Belgium): 3b0af40e-6699-4025-84a5-56b142f5c5ed
• SCIP notification number (Bulgaria): 015d0074-9f8e-4a57-9d45-46ed4dca8c6e
• SCIP notification number (Czech Republic): b1558ea0-2d05-4feb-8a1b-ce0907c5820f
• SCIP notification number (Denmark): d42b0300-d9ab-4985-81d4-570db02ac1c0
• SCIP notification number (Finland): 0c232170-2069-4628-a334-09e1def2e3a1
• SCIP notification number (France): a797aab2-465d-49c3-b492-3ea4fe5256e6
• SCIP notification number (Germany): 72bc22c8-59a8-4753-96ab-1b61826e5f84
• SCIP notification number (Hungary): 91bc62d2-4750-4943-9696-f06e91d823f0
• SCIP notification number (Italy): a7b8ca94-e0b7-424f-a7bc-75d16815d5ef
• SCIP notification number (Netherlands): 58b5a38e-963e-49d5-83f0-749eac03578e
• SCIP notification number (Poland): f7118b7f-34be-48e5-9bd8-450161954b01
• SCIP notification number (Romania): 2491519c-e4d9-47e6-a634-8c52770e1bbe
• SCIP notification number (Sweden): e938f251-0163-452c-b986-16f04845bd2e

Environmental requirements

• Ambient temperature (operation): 0 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Relative humidity: ≤ 85 % (non-condensing)

Material data

• Fire load: 0.772MJ
• Weight: 32g

Mechanical data

• Housing design: Mounting carrier
• Mating cycles: 500
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 51 mm / 2.007 inches
• Height: 85 mm / 3.346 inches
• Width: 20.5 mm / 0.807 inches

Safety and protection

• Dielectric strength (contact/contact) (AC, 1 min): 1kV_rms
