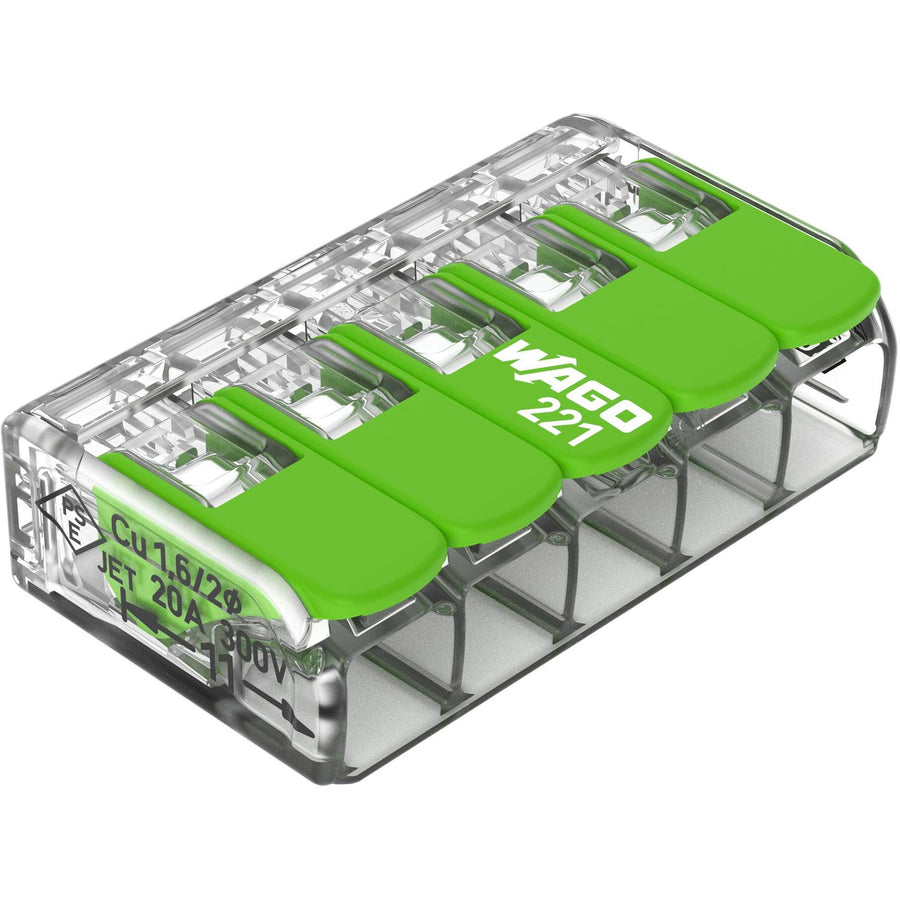

WAGO 221-425 LEVER-NUT® 5-Conductor Compact Splicing Connector (Green Lever)

5-wire splicing connector with levers - WAGO (221 series) - for 0.14mm2...4mm2 / for #24AWG...#12AWG - Rated current (IEC) 32A - Clear/transparent housing / Green lever color - with CAGE CLAMP spring connections - equivalent to 221425

Specifications

• Primary brand: WAGO
• Functions: 5-wire splicing connector with levers
• Temperature: Continuous operating temperature +105°C
• Rated current: (IEC) 32A
• Color: Clear/transparent housing|Green lever
• Rated operating voltage (Ue): (IEC) 450V|(UL) 600V
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.14mm2...4mm2 fine stranded conductors|for 0.2mm2...4mm2 stranded conductors|for 0.2mm2...4mm2 solid conductors|for #24AWG...#12AWG fine stranded or stranded or solid conductors
• Dimensions: H8.4mm x W30mm x D18.6mm
• Material: Polycarbonate (PC) housing|PBT actuator from post-consumer recycled
• Ambient air temperature for operation: +85°C
• Customs Tariff Number: 85369010000
• GTIN code: 4066966345285
• ETIM code: EC000446
• Order code / Manufacturer SKU: 221-425
• Manufacturer product status: Commercialized
• Equivalent to: 221425
• EAN code: 4066966355468
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - EN 60998 - certificate NTR NL-7990|- CQC - CHINA QUALITY CERT. CENTRE - GB/T 13140.3 - certificate CQC16003140469|- cULus_Listed_667F - Underwriters Laboratories Inc. - UL 486C - certificate UL-CA-L69654|- ENEC 05 - DEKRA Certification B.V. - EN 60669 - certificate 71-127529|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group IIIa|V-2 flammability rating
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: 5-wire splicing connector with levers - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC000446
• ETIM 9.0: EC000446
• GTIN: 4066966345285
• Packaging type: Box
• PU (SPU): 250 (25) pcs

Connection data

• Clamping units: 5
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 4 mm² / 24 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm² / 12 AWG
• Connection 1 - Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Connection 1 - Stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Connection 1 - Strip length: 11 mm / 0.43 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 450V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Ratings per: EN 60664
• Ratings per UL - Approvals per: UL 486C
• Ratings per UL - Rated current UL (Use Group C): 20A
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): +85 °C
• Continuous operating temperature: 105 °C
• Temperature marking per EN 60998: T85

Material data

• Actuator color: green
• Color: transparent
• Fire load: 0.111MJ
• Flammability class per UL94: V2
• Housing material: bio-circular PC
• Insulation material (actuator): PBT from post-consumer recycled material
• Insulation material (main housing): Polycarbonate (PC)
• Material group: IIIa
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.1g

Notes

• Safety Information: in grounded power lines
• Safety management note: NOTICE: Observe installation and safety instructions!


  • Only to be used by electricians!
  • Do not work under voltage/load!
  • Use only for proper use!
  • Observe national regulations/standards/guidelines!
  • Observe technical specifications for the products!
  • Observe the number of permissible potentials!
  • Do not use damaged/dirty components!
  • Observe conductor types, cross-sections and strip lengths!
  • Insert conductor until it hits the product‘s backstop!
  • Use original accessories!


  To be sold only with installation instructions!

Physical data

• Depth: 18.6 mm / 0.732 inches
• Height: 8.4 mm / 0.327 inches
• Width: 30 mm / 1.181 inches

Available packages (sold as whole packages):

• Box of 25: 25 pieces · WAGO 221-425/K000-0002
• Bag of 500: 500 pieces · WAGO 221-425/variant/60522735
• Bag of 1,000: 1,000 pieces · WAGO 221-425/variant/60522736
