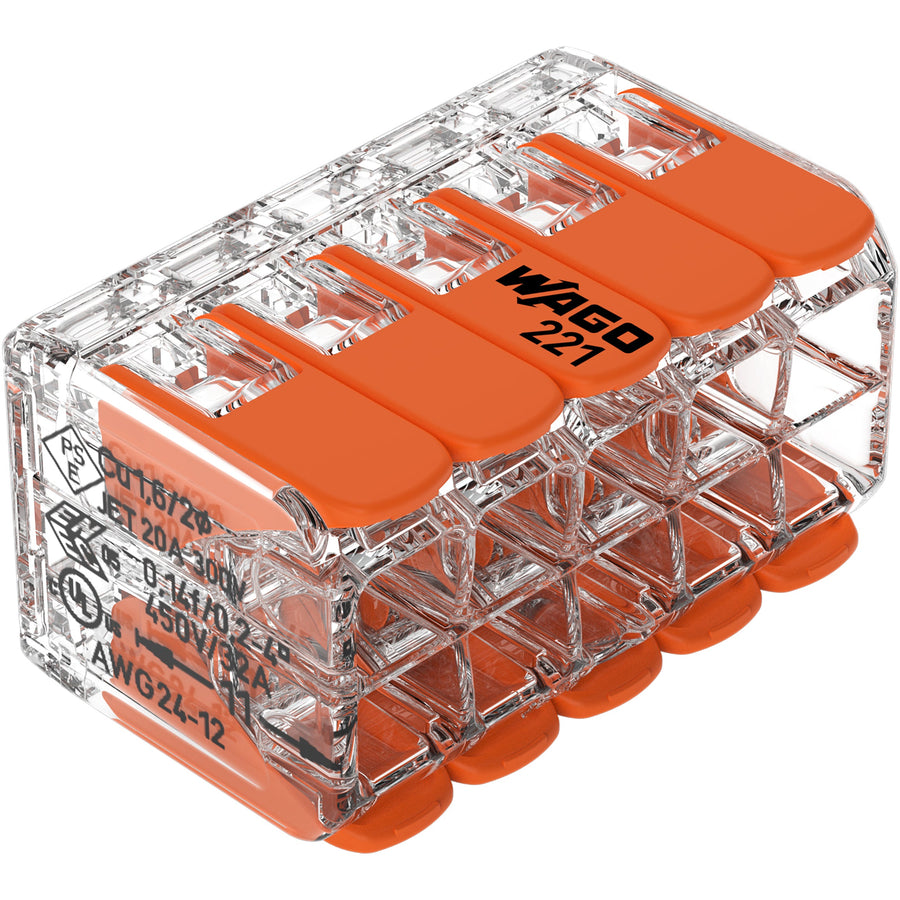

WAGO 221-420 LEVER-NUT® 10-Conductor Splicing Connector

WAGO component - equivalent to 221420

Specifications

• Primary brand: WAGO
• GTIN code: 4066966611663
• Order code / Manufacturer SKU: 221-420
• Manufacturer product status: Commercialized
• Equivalent to: 221420
• Manufacturer description: Splicing connector with levers; for all conductor types; max. 4mm2; 10-conductor; transparent housing; Surrounding air temperature max 85°C (T85); 4mm2; transparent
• Manufacturer product specifications: Notes - Safety management note -- NOTICE Observe installation and safety instructions! / /|Only to be used by electricians!|Do not work under voltage/load!|Use only for proper use!|Observe national regulations/standards/guidelines!|Observe technical specifications for the products!|Observe the number of permissible potentials!|Do not use damaged/dirty components!|Observe conductor types; cross-sections and strip lengths!|Insert conductor until it hits the product's backstop!|Use original accessories! / / To be sold only with installation instructions!|Notes - Safety Information -- in grounded power lines|Electrical data - Ratings per IEC/EN - Ratings per -- EN 60664|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 450V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 32A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (II / 2) Overvoltage category II / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 486C|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 20A|Connection data - Clamping units -- 10|Connection data - Total number of potentials -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Lever|Connection data - Connection 1 - Connectable conductor materials -- Copper|Connection data - Connection 1 - Nominal cross-section -- 4mm2 / 12 AWG|Connection data - Connection 1 - Solid conductor -- 0.2...4mm2 / 24...12 AWG|Connection data - Connection 1 - Stranded conductor -- 0.2...4mm2 / 24...12 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.14...4mm2 / 24...12 AWG|Connection data - Connection 1 - Strip length -- 11mm / 0.43"|Connection data - Connection 1 - Wiring direction -- Side-entry wiring|Physical data - Width -- 29.8mm / 1.173"|Physical data - Height -- 15.8mm / 0.62"|Physical data - Depth -- 18.3mm / 0.72"|Material data - Color -- transparent|Material data - Cover color -- transparent|Material data - Material group -- IIIa|Material data - Insulation material (main housing) -- Polycarbonate (PC)|Material data - Flammability class per UL94 -- V2|Material data - Fire load -- 0.132MJ|Material data - Actuator color -- orange|Material data - Weight -- 7g|Environmental requirements - Ambient temperature (operation) -- +85°C|Environmental requirements - Temperature marking per EN 60998 -- T85|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 150 (15) pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4066966611663|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Germany
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• GTIN: 4066966611663
• Packaging type: Box
• PU (SPU): 150 (15) pcs

Connection data

• Clamping units: 10
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 4 mm² / 24 … 12 AWG
• Connection 1 - Nominal cross-section: 4 mm² / 12 AWG
• Connection 1 - Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Connection 1 - Stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Connection 1 - Strip length: 11 mm / 0.43 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 450V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Ratings per: EN 60664
• Ratings per UL - Approvals per: UL 486C
• Ratings per UL - Rated current UL (Use Group C): 20A
• Ratings per UL - Rated voltage UL (Use Group C): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): +85 °C
• Temperature marking per EN 60998: T85

Material data

• Actuator color: orange
• Color: transparent
• Cover color: transparent
• Fire load: 0.132MJ
• Flammability class per UL94: V2
• Insulation material (main housing): Polycarbonate (PC)
• Material group: IIIa
• Note (material data):
  Information on material specifications can be found here

• Weight: 7g

Notes

• Safety Information: in grounded power lines
• Safety management note: NOTICE: Observe installation and safety instructions!


  • Only to be used by electricians!
  • Do not work under voltage/load!
  • Use only for proper use!
  • Observe national regulations/standards/guidelines!
  • Observe technical specifications for the products!
  • Observe the number of permissible potentials!
  • Do not use damaged/dirty components!
  • Observe conductor types, cross-sections and strip lengths!
  • Insert conductor until it hits the product‘s backstop!
  • Use original accessories!


  To be sold only with installation instructions!

Physical data

• Depth: 18.3 mm / 0.72 inches
• Height: 15.8 mm / 0.62 inches
• Width: 29.8 mm / 1.173 inches

Available packages (sold as whole packages):

• Box of 15: 15 pieces · WAGO 221-420/K000-0002
• Bag of 250: 250 pieces · WAGO 221-420/variant/60585612
• Bag of 500: 500 pieces · WAGO 221-420/variant/60585610
